Brightstar Sandstone Gold Intercept: 305m of Unconstrained Mineralisation

When a Drill Hole Refuses to Find the Edge of an Ore Body

In gold exploration, the moment a drill hole terminates inside mineralisation rather than exiting into barren waste rock is one of the most consequential outcomes a geologist can encounter. It does not simply mean the deposit is larger than expected. It means the entire geometric framework used to model that deposit must be rebuilt from the ground up. Resource estimates, mine planning assumptions, underground stope configurations, and pre-feasibility economics all become provisional the instant a hole ends in ore.

This is precisely the situation that has emerged at the Two Mile Hill–Shillington deposit within Brightstar Resources' Sandstone gold project in Western Australia's Murchison region. A single deep diamond drill hole, TMHRCD26020, was designed to locate the eastern contact of the mineralised tonalite intrusion. Instead, it drilled through 305.4 metres of gold mineralisation at an average grade of 1.82 g/t Au from 351.9 metres depth, reached its maximum depth of 657.3 metres after exhausting the available drill rod string, and remained entirely within the host rock at termination. The boundary the geologists were looking for was never found. The Brightstar Sandstone gold intercept has effectively redrawn the deposit.

Understanding Tonalite as a Gold-Hosting Geological Unit

Tonalite is an intrusive igneous rock composed predominantly of plagioclase feldspar and quartz, with subordinate hornblende and biotite. Unlike granite, it is relatively mafic in character and typically forms as batholithic or smaller intrusive bodies that crystallise from magma emplaced into older host sequences. In the Murchison region of Western Australia, tonalite bodies form part of the Archaean greenstone-granite terrain that hosts several historically significant gold systems.

The gold-hosting mechanism within tonalite-dominated systems operates through magmatic-hydrothermal processes. As the tonalite intrusion cools and contracts, late-stage hydrothermal fluids migrate along internal fractures, contact zones, and shear surfaces. Gold is precipitated from these fluids as temperature and pressure conditions change, concentrating along structurally favourable pathways within the intrusion. The result is typically a broad, lower-grade envelope of disseminated mineralisation punctuated by discrete, structurally controlled high-grade shoots where fluid channelling was most intense.

This architecture has direct implications for resource volume. The thicker and more continuous the intrusion, the greater the total host rock volume available to carry mineralisation. Prior geological modelling at Two Mile Hill placed the horizontal thickness of the tonalite at approximately 60 metres. That interpretation was built from limited drill spacing and surface geophysical data, with the eastern contact of the body remaining poorly constrained because no deep drilling had previously tested it at those depths. The revised interpretation now suggests the tonalite may exceed 180 metres in horizontal thickness at depth, representing a tripling of the previously modelled dimension.

Breaking Down the Brightstar Sandstone Gold Intercept: What the Numbers Actually Mean

To understand why the Brightstar Sandstone gold intercept has attracted attention, it helps to unpack the internal structure of the result rather than treating it as a single number. Furthermore, interpreting drill results correctly is essential for understanding the true significance of any intercept.

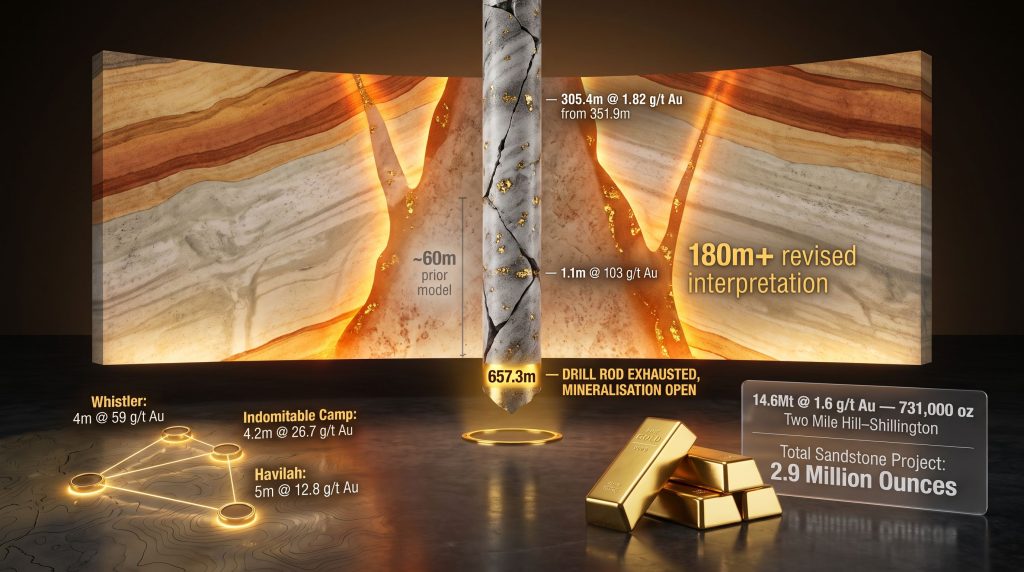

Key Intercept Summary: Hole TMHRCD26020

A 305.4m broad intercept at 1.82 g/t Au from 351.9m depth, remaining in mineralised tonalite at its terminal depth of 657.3m, with the drill program halted solely because the available drill rod string was exhausted, not because mineralisation had ended.

The intercept contains several distinct high-grade zones that sit within the broader mineralised envelope:

The grade distribution pattern here is geologically revealing. Broad, moderate-grade intervals bracketed by narrower bonanza-grade sub-intervals are characteristic of structurally controlled high-grade shoots hosted within a lower-grade disseminated envelope. This two-tier architecture is economically significant: the broad envelope provides bulk tonnage at above cut-off grades, while the high-grade shoots deliver the economic leverage that drives internal rates of return in underground bulk mining scenarios.

A useful metric for comparing intercept quality across projects is the gram-metre calculation, which multiplies intercept width by average grade to produce a dimensionless quality index. For hole TMHRCD26020: 305.4m x 1.82 g/t = approximately 556 gram-metres. This places the intercept comfortably within the upper tier of Australian undeveloped gold project drill results by this measure.

Shallower Infill Results: Confirming Vertical and Lateral Continuity

Equally important to the deep hole result is the data returned by shallower infill drilling within the same program. These holes were designed to increase drill density between previously tested sections, and their results directly support the geological continuity of the deposit:

These results demonstrate that broad, consistently mineralised intervals persist from approximately 263 metres depth down to beyond 600 metres, a vertical span exceeding 340 metres. For underground mine planning, this kind of vertical extent is critical. It allows engineers to model multiple mining levels stacked beneath each other, spreading infrastructure costs across a larger ore inventory and improving the economics of shaft or decline development.

The Intrusion Blow-Out Hypothesis and Its Resource Implications

The concept of an intrusion blow-out describes a geological phenomenon where a dyke or stock-like igneous body widens substantially at depth, often reflecting a change in the structural regime or host rock competency that allowed the original magma to spread laterally as it ascended. At Two Mile Hill, the initial interpretation placed the tonalite as a relatively narrow, moderately dipping body approximately 60 metres thick horizontally. The failure of the deep hole to reach the eastern contact, combined with the geometry of the mineralised intercepts at depth, now points toward a body that may be expanding in both eastward and westward directions below approximately 400 metres.

Technical Insight: When a drill hole designed to exit a geological unit instead terminates within it after travelling more than 300 metres through continuous mineralisation, the implication is not merely that the unit is large. It means the unit's boundaries are in a fundamentally different position than the geological model predicted, requiring full reconstruction of the three-dimensional framework.

The flow-on effect to the mineral resource estimate is direct and significant. Under the JORC Code 2012, which governs resource reporting in Australia, resource volumes are calculated by interpolating grade values between drill holes within a geological domain defined by the interpreted boundaries of the mineralised unit. If those boundaries shift outward, the geological domain expands, and the estimated contained ounces increase accordingly. A tripling of interpreted thickness, if confirmed by follow-up drilling, would represent a material expansion of the geological domain at depth.

The current mineral resource at Two Mile Hill–Shillington stands at 14.6 million tonnes at 1.6 g/t Au for 731,000 ounces. This forms the cornerstone of Brightstar's broader Sandstone project, which carries a combined resource inventory of 2.9 million ounces of gold across multiple deposits and prospects.

District-Scale High-Grade Results Across the Sandstone Tenement

While the Two Mile Hill result dominates the technical picture, the broader tenement package has produced several satellite intercepts that reinforce the district-scale gold endowment at Sandstone. These results are not part of the Two Mile Hill resource and represent separate exploration targets. Consequently, when considering gold exploration trends across Western Australia, district-scale endowments of this nature are increasingly attracting serious industry attention.

• 4.2m at 26.7 g/t Au from 113.9m at Indomitable Camp
• 4m at 59 g/t Au at the Whistler prospect
• 2m at 33.7 g/t Au at Montague-Boulder
• 5m at 12.8 g/t Au at Havilah, including 1m at 55.2 g/t Au

High-grade satellite intercepts of this nature across a district carry a specific analytical value: they indicate that gold-concentrating hydrothermal systems operated broadly across the tenement, not just at the known deposits. This raises the prospectivity of the package beyond the currently defined resources and suggests that systematic drilling across the wider tenement could deliver additional resource inventory over time.

Why Diamond Drilling Is Non-Negotiable for Deep Target Testing

The decision to deploy diamond drilling rather than reverse circulation at Two Mile Hill reflects a fundamental constraint in deep exploration methodology. Reverse circulation drilling, which uses compressed air to return rock chips to surface, is cost-effective and fast for targets within approximately 300 metres of surface. Beyond that depth, several factors compound to make RC increasingly impractical: air pressure requirements escalate, sample quality degrades as chips become contaminated by groundwater and recycled cuttings, and structural interpretation from chip samples becomes unreliable.

Diamond core drilling solves these problems by recovering a solid cylindrical core sample that can be:

1. Oriented using downhole survey tools to determine the three-dimensional attitude of geological structures
2. Logged for visible gold observations, which provide pre-assay indicators of high-grade zones
3. Sampled at precisely defined intervals to minimise grade smearing
4. Used to directly measure the orientation and thickness of the mineralised intrusion

The practical constraint that terminated hole TMHRCD26020 at 657.3 metres was simply the length of the drill rod string available on site. This is a logistical issue, not a geological one. Diamond rigs are scheduled to return to Two Mile Hill in early August 2026 with the objective of completing deeper holes designed to finally locate the eastern contact of the tonalite and define the full thickness of the blow-out geometry.

The deployment of four active drill rigs across the Sandstone project simultaneously is operationally significant. Running multiple rigs in parallel on a single project substantially compresses the timeline between drilling completion and resource update. It also signals a level of exploration confidence that manifests in tangible capital allocation decisions.

The Underground Pre-Feasibility Study: What It Evaluates and Why It Matters Now

Entech's appointment to complete an underground pre-feasibility study for Two Mile Hill reflects a deliberate decision to advance mine planning in parallel with ongoing resource drilling. This parallel-path approach carries inherent risks, since PFS assumptions may need to be revised when the updated resource is released, but it also offers a significant efficiency advantage. By the time the year-end mineral resource estimate update is completed, a substantial portion of the underground engineering work will already be done.

A pre-feasibility study for an underground gold deposit typically evaluates:

• Mining method selection, such as long-hole open stoping or sub-level caving, based on the geometry and geomechanical properties of the orebody
• Stope design optimisation, balancing ore recovery against dilution by waste material
• Ventilation, dewatering, and haulage infrastructure requirements
• Processing plant configuration and metallurgical assumptions
• Capital cost estimation to a pre-feasibility level of accuracy, typically plus or minus 25 per cent
• Operating cost modelling for underground extraction and surface processing

For a tonalite-hosted system with revised horizontal thickness potentially exceeding 180 metres, the underground mining method assumptions change materially. Wider stopes allow larger blast patterns, reducing the number of individual development headings required and lowering unit development costs per tonne of ore. Dilution management also improves as stope widths increase relative to the blast void geometry. In bulk underground mining economics, intrusion width is not simply a geological variable. It is a direct driver of cost per ounce.

The Critical Path from Drill Result to Development Decision

1. Deep diamond drilling program returning to Two Mile Hill in August 2026
2. Mineral resource estimate update targeted before the end of 2026
3. Underground pre-feasibility study incorporating the updated MRE
4. Potential advancement to a definitive feasibility study as the logical next stage
5. Project financing, permitting, and construction decision

Benchmarking the Result Against Western Australian Gold Exploration Standards

Contextualising the Brightstar Sandstone gold intercept within the broader Western Australian gold exploration landscape requires an understanding of the grade benchmarks applicable to intrusion-hosted systems specifically. These systems behave differently from the orogenic lode gold deposits that characterise the Kalgoorlie-Kambalda corridor, where high-grade, narrow, structurally hosted veins are the dominant mineralisation style. In addition, careful drill results interpretation is vital when comparing intercept quality across different deposit styles.

The 1.82 g/t average across a 305-metre interval is particularly notable for bulk mining economics. A rule of thumb used by underground mining engineers is that broader lower-grade intercepts can outperform narrow high-grade hits economically when the mining method selected is mass extraction rather than selective narrow vein mining. At 305 metres wide, the Two Mile Hill tonalite is firmly in mass-extraction territory.

The presence of bonanza-grade sub-intervals, specifically 1.1m at 103 g/t Au and 1.5m at 46.7 g/t Au, within an already broad high-grade zone deserves particular attention. Bonanza intervals within a bulk-grade envelope are not simply statistical outliers. They indicate structurally focussed fluid flow within the broader mineralised system, typically along secondary fault splays or shear zones that intersect the intrusion. Identifying and modelling these shoots during the resource update process could have a meaningful effect on the average grade of the classified resource. Mining.com.au's coverage of this intercept further underscores the broader industry interest it has generated.

Frequently Asked Questions: Brightstar Sandstone Gold Intercept

What does an unconstrained intercept mean in a resource context?

An unconstrained intercept is one where the drill hole does not exit the mineralised unit at either end of the reported interval. In this case, the hole entered the tonalite at 351.9 metres and remained within it until the hole ended at 657.3 metres. Because the boundaries of the mineralised zone were not intersected, the true width of the body at that location remains unknown. Resource estimation requires defined boundaries, which is why follow-up drilling to locate the contacts is an essential prerequisite for a reliable MRE update.

What is visible gold and why does it matter before assays are returned?

Visible gold is metallic gold that can be observed with the naked eye or under low magnification in diamond drill core. Its presence is logged during core processing and typically flags intervals likely to return high assay grades. Critically, visible gold logging occurs days or weeks before laboratory assay results arrive, giving geologists an early qualitative signal about mineralisation intensity. The observation of visible gold throughout the tonalite intrusion across the full length of hole TMHRCD26020 was interpreted as confirmation that mineralisation is pervasive within the host rock, not just confined to discrete vein structures.

What resource size threshold matters for investor and industry attention?

The Sandstone project's combined resource of 2.9 million ounces places it within the category of undeveloped gold inventories that historically attract attention from mid-tier and major producers seeking to replace declining reserves. Industry observers generally consider resources exceeding two million ounces as warranting serious development or acquisition consideration, provided grade, geometry, and metallurgy are supportive. However, it is important to note that resource size alone does not determine project value or development certainty. Investors should weigh all available technical and financial information before drawing conclusions. For further context on the broader project, Brightstar's Sandstone hub page provides additional background on the full tenement portfolio.

When will the updated mineral resource estimate be released?

Brightstar has indicated its intention to deliver an updated mineral resource estimate for the Sandstone project before the end of 2026. This timeline depends on the completion of the August 2026 diamond drilling program at Two Mile Hill, subsequent laboratory assaying, geological modelling, and the formal JORC-compliant estimation process. Any delays in drilling or assay turnaround could affect this schedule.

This article is intended for informational purposes only and does not constitute financial advice. Mineral resource estimates, drill results, and project timelines involve forward-looking statements that are subject to geological, technical, and market risks. Readers should conduct their own due diligence before making any investment decisions.
