Vale S11D Semimobile Crushing Station Engineering and Implementation Guide

Advanced Engineering Fundamentals Drive Next-Generation Mining Operations

Modern mining operations face unprecedented pressure to optimise material handling while reducing environmental impact. The evolution of in-pit crushing and conveying (IPCC) methodologies represents a fundamental shift from traditional truck-based haulage systems to integrated conveyor networks. This transformation addresses critical operational challenges including energy consumption, labour efficiency, and carbon footprint reduction across large-scale mineral extraction projects.

The integration of semimobile crushing station Vale S11D technology within IPCC frameworks has emerged as a strategic solution for major mining operations seeking operational flexibility without sacrificing throughput capacity. These systems combine the mobility advantages of portable equipment with the stability and capacity characteristics of permanent installations, creating hybrid solutions that adapt to evolving pit geometries and mining sequences.

What Makes Semi-Mobile Crushing Technology Essential for Modern Iron Ore Operations?

Understanding In-Pit Crushing and Conveying (IPCC) Fundamentals

In-pit crushing and conveying systems represent a paradigm shift in material handling methodology for large-scale mining operations. Traditional truck-based haulage systems require significant fuel consumption, extensive maintenance programmes, and substantial labour forces to manage fleet operations. IPCC technology eliminates these requirements by positioning crushing equipment directly within the mining area and utilising conveyor belt networks for material transport.

The core principle underlying IPCC implementation involves reducing material handling stages through strategic equipment placement. Primary crushing occurs immediately following excavation, enabling direct feed to conveyor systems that transport material to processing facilities. This approach minimises energy loss associated with multiple material handling transfers while providing consistent feed rates to downstream processing equipment.

Environmental advantages of IPCC systems extend beyond fuel consumption reduction. Conveyor-based transport generates significantly lower dust emissions compared to truck haulage operations, while noise levels decrease substantially due to electric motor operation versus diesel engine powered vehicles. These factors contribute to improved working conditions and reduced environmental impact on surrounding communities.

The Economics Behind Semi-Mobile Crushing Adoption

Capital expenditure analysis for semi-mobile crushing systems reveals complex cost considerations balancing initial investment against operational savings. While semi-mobile installations require higher upfront investment compared to traditional mobile crushers, their increased capacity and reduced relocation costs provide superior long-term economics for high-volume operations.

Cost Reduction Categories:

• Fuel elimination: Conveyor systems operate on electrical power, eliminating diesel fuel requirements for material transport
• Maintenance optimisation: Reduced truck fleet requirements decrease tyre replacement, engine maintenance, and mechanical repair costs
• Labour efficiency: Automated conveyor systems require fewer operators compared to truck fleet management
• Infrastructure simplification: Haul road construction and maintenance costs are eliminated in IPCC areas

Return on investment timelines for large-scale iron ore operations typically range between three to five years, depending on operational scale and local cost structures. Furthermore, the mining industry evolution demonstrates these economic principles through measurable reductions in operational complexity and associated cost savings.

How Do Semi-Mobile Crushing Stations Integrate with Existing Mine Infrastructure?

Modular Design Architecture and Installation Process

Semi-mobile crushing stations utilise modular construction principles enabling sequential installation and commissioning procedures. The four-module system configuration provides operational flexibility while maintaining structural integrity under demanding mining conditions. Each module serves specific operational functions while contributing to overall system performance.

Module Configuration Analysis:

Weight distribution strategies for 1,600-tonne installations require comprehensive foundation engineering and site preparation procedures. Structural steel components must be positioned to minimise ground pressure while maintaining operational stability during high-throughput processing periods. In addition, the modular approach enables installation completion within compressed timeframes, reducing operational disruption during deployment phases.

Feed System Engineering and Capacity Management

Material handling efficiency depends critically on feed system design and capacity management protocols. The 250-tonne hopper capacity with integrated 205-tonne grizzly system provides surge capacity for irregular material delivery while ensuring consistent downstream feed rates. Grizzly systems remove oversized material that could damage primary crushing equipment or cause operational disruptions.

Apron feeder technology specifications include 11-metre length with dual-motor configuration providing 2 x 370 kW total power. This configuration ensures reliable material delivery under varying load conditions while maintaining consistent feed rates to primary crushing equipment. Variable speed control enables operators to optimise throughput based on material characteristics and downstream capacity requirements.

Material flow optimisation from pit face to primary crushing involves coordination between excavation equipment, material delivery systems, and crushing capacity. However, the semimobile crushing station Vale S11D implementation demonstrates effective integration of these systems through coordinated operational procedures and equipment synchronisation protocols.

Why Are Sizer Technologies Preferred Over Traditional Gyratory Crushers in Semi-Mobile Applications?

Comparative Analysis: Sizer vs. Gyratory Performance

Sizer technology offers distinct advantages for semi-mobile applications compared to conventional gyratory crushers. The fundamental difference lies in crushing mechanism: sizers utilise low-speed, high-torque operation with specially designed teeth profiles, while gyratory crushers employ high-speed crushing chambers with compression-based size reduction.

Vibration and Dynamic Load Considerations:

• Operational speed: Sizer systems operate at significantly lower speeds, reducing vibration amplitude and dynamic loading
• Foundation requirements: Reduced vibration enables simplified foundation design and lower construction costs
• Equipment longevity: Lower dynamic loads extend equipment lifespan and reduce maintenance requirements
• Installation flexibility: Simplified foundation requirements enable deployment in challenging ground conditions

Maintenance accessibility represents a critical advantage for sizer technology in semi-mobile applications. Component replacement procedures can be completed more efficiently due to modular design principles and improved access arrangements. Consequently, consumable replacement intervals extend beyond gyratory crusher equivalents due to optimised tooth profiles and reduced wear rates.

Technical Specifications of Modern Sizer Systems

The ABON® 16/400CHDTD-RA sizer configuration demonstrates advanced engineering principles optimised for iron ore characteristics. The dual-motor arrangement provides 2 x 800 kW total power with redundancy capabilities ensuring operational continuity during maintenance procedures. Peak capacity of 11,500 tonnes per hour with nominal operation at 9,500 tonnes per hour provides operational flexibility for varying production requirements.

Performance Characteristics:

Product size distribution characteristics favour sizer technology for downstream processing requirements. Minimal fines generation reduces handling complications while maintaining consistent sizing for conveyor system compatibility. The tooth profile design creates fracture patterns that optimise particle shape for subsequent processing stages.

What Are the Key Performance Metrics for Semi-Mobile Crushing Station Success?

Throughput Optimisation and Capacity Planning

Performance measurement protocols for semi-mobile crushing operations focus on consistency, reliability, and integration effectiveness. The distinction between nominal capacity (9,500 t/h) and peak capacity (11,500 t/h) provides operational flexibility for production planning while ensuring equipment protection during surge conditions.

Capacity Management Strategies:

• Nominal operation: Sustained throughput ensuring equipment longevity and consistent product quality
• Peak operation: Short-duration surge capacity for production flexibility and schedule recovery
• Feed size control: Maximum 1,600 x 1,600 mm input specifications prevent equipment damage
• Product sizing: Optimised discharge characteristics for downstream conveyor compatibility

Equipment availability metrics become critical for operations dependent on single-point crushing capacity. For instance, predictive maintenance protocols utilising vibration analysis, temperature monitoring, and wear measurement systems enable proactive maintenance scheduling while minimising unplanned downtime events.

Integration with Conveyor Belt Networks

Link conveyor specifications require precise engineering to ensure seamless material transfer from crushing equipment to main haulage conveyor systems. The 64-metre length with 2,400 mm width provides adequate transfer distance while accommodating elevation changes and directional requirements for integration with existing infrastructure.

Material transfer efficiency depends on synchronised operation between crushing discharge rates and conveyor capacity. Belt speed calculations must account for material density, flow characteristics, and surge conditions to prevent spillage or system overloading. Dust suppression systems at transfer points maintain environmental compliance while protecting equipment from contamination.

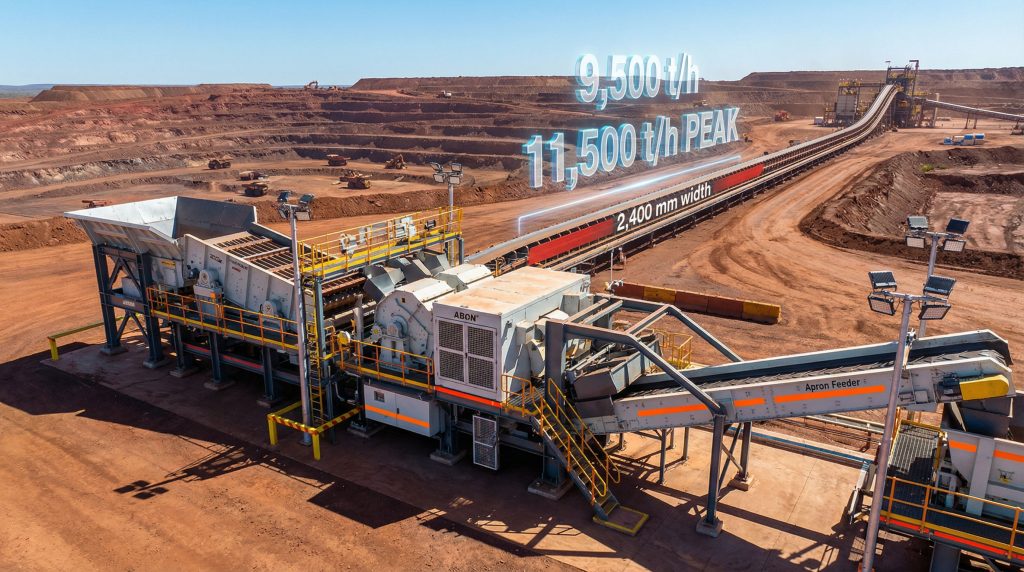

The semimobile crushing station Vale S11D has demonstrated consistent performance since commissioning, achieving nominal capacity targets while successfully integrating with existing conveyor infrastructure to support the mine's transition to truckless operations.

How Do Semi-Mobile Stations Support Mine Planning and Pit Advancement?

Flexibility in Mining Sequence Development

Semi-mobile crushing technology provides strategic advantages for mine planning by enabling responsive positioning relative to active mining areas. Traditional stationary crushing installations create fixed infrastructure constraints that may not align with optimal mining sequences, while fully mobile units lack capacity for high-volume operations.

Relocation capabilities enable crushing equipment to advance with pit development, maintaining optimal haulage distances and operational efficiency. The modular design facilitates systematic relocation procedures that can be completed during planned maintenance periods, minimising production interruption while optimising equipment positioning for subsequent mining phases.

Mine Planning Integration Benefits:

• Reduced haulage distances: Equipment positioning near active mining areas minimises material transport requirements
• Operational flexibility: Rapid response to changing geological conditions and ore body characteristics
• Infrastructure optimisation: Reduced requirement for permanent haul road construction and maintenance
• Production continuity: Seamless transition between mining areas without infrastructure reconstruction

Case Study: Vale S11D Area 5 Implementation

The Area 5 deployment at Vale S11D demonstrates practical implementation of semi-mobile crushing technology within a comprehensive IPCC framework. Construction activities completed during 2024 with commissioning achieved in 2025 represent accelerated deployment timelines compared to traditional stationary installations.

Implementation Timeline Analysis:

The strategic objective involves enabling new pit face development while strengthening the overall IPCC model implementation. This approach reduces operational complexity by eliminating truck haulage requirements in designated areas while providing operational flexibility for future mining sequence development.

What Operational Challenges Must Be Addressed in Semi-Mobile Crushing Implementation?

Material Handling and Flow Management

Iron ore characteristics significantly influence crushing equipment performance and operational requirements. Material hardness variations, moisture content fluctuations, and size distribution inconsistencies create operational challenges requiring adaptive management strategies. The S11D ore body presents specific characteristics requiring customised equipment configurations and operational procedures.

Material Challenge Categories:

• Hardness variability: Bond Work Index fluctuations affecting crushing efficiency and wear rates
• Moisture management: Seasonal variations influencing material flow characteristics and equipment performance
• Size distribution: Feed material consistency affecting crushing efficiency and product quality
• Abrasiveness factors: Mineral composition impact on consumable wear rates and maintenance requirements

Blockage prevention strategies incorporate multiple protection systems including grizzly screening, metal detection, and automated feed control systems. Emergency stop procedures and rapid access arrangements enable quick resolution of operational disruptions while minimising production impact.

Maintenance and Reliability Optimisation

Predictive maintenance protocols for semi-mobile crushing operations utilise advanced monitoring systems to optimise equipment reliability while minimising maintenance costs. AI computing advancements enable vibration analysis, temperature monitoring, and oil analysis programmes to provide early warning indicators for potential equipment failures.

Maintenance Strategy Components:

• Condition monitoring: Continuous equipment health assessment through sensor networks
• Preventive scheduling: Time-based maintenance procedures ensuring equipment reliability
• Predictive analytics: Data-driven maintenance scheduling optimising equipment availability
• Emergency response: Rapid repair procedures minimising unplanned downtime impact

Skilled technician training requirements encompass mechanical, electrical, and hydraulic systems specific to semi-mobile crushing equipment. Specialised knowledge requirements include sizer technology, modular system integration, and IPCC operational procedures. Training programmes must address both routine maintenance procedures and emergency response protocols.

How Do Semi-Mobile Crushing Stations Impact Mine Economics and Sustainability?

Cost Reduction Analysis and ROI Calculations

Economic impact assessment for semi-mobile crushing implementation reveals multiple cost reduction categories contributing to overall operational efficiency. Fuel consumption elimination represents the most immediate and measurable benefit, while maintenance cost optimisation and labour efficiency improvements provide long-term economic advantages.

Quantified Economic Benefits:

• Fuel elimination: Complete removal of diesel fuel requirements for material haulage in IPCC areas
• Maintenance reduction: Decreased truck fleet requirements reducing tyre, engine, and mechanical maintenance costs
• Labour optimisation: Reduced operator requirements through automated conveyor systems
• Infrastructure savings: Eliminated haul road construction and maintenance expenses

Return on investment calculations must account for operational scale, local cost structures, and equipment utilisation rates. High-volume operations achieve faster payback periods due to greater absolute cost savings, while smaller operations may require longer evaluation periods to justify capital investment.

Environmental Benefits and Carbon Footprint Reduction

Environmental impact reduction through IPCC implementation addresses multiple sustainability objectives including emissions reduction, energy efficiency improvement, and operational impact minimisation. Renewable energy solutions integrated with electric conveyor systems eliminate direct fossil fuel consumption while providing superior energy efficiency compared to truck-based haulage.

Environmental Impact Categories:

• Emissions reduction: Elimination of diesel truck emissions in IPCC operational areas
• Energy efficiency: Electric motor systems providing superior energy conversion compared to internal combustion engines
• Dust reduction: Enclosed conveyor systems minimising particulate emissions
• Noise reduction: Electric motor operation significantly quieter than diesel engine powered equipment

Carbon footprint reduction depends on electrical power source characteristics and operational scale. Operations utilising renewable energy sources achieve maximum environmental benefits, while grid-connected systems provide substantial improvements over diesel-powered alternatives.

What Future Developments Are Expected in Semi-Mobile Crushing Technology?

Automation and Remote Operation Capabilities

Advanced automation systems represent the next evolutionary step in semi-mobile crushing technology development. Remote operation capabilities enable centralised control of multiple crushing stations while reducing operator exposure to hazardous mining environments. Integration with mine planning software provides predictive positioning capabilities optimising equipment location for future mining sequences.

Automation Development Areas:

• Remote monitoring: Centralised operational control reducing on-site personnel requirements
• Autonomous operation: Self-regulating systems optimising performance based on material characteristics
• Predictive positioning: Integration with mine planning software for optimal equipment placement
• Performance optimisation: Artificial intelligence systems maximising throughput while minimising wear

Current technological limitations include reliable communication systems in challenging mining environments, sensor accuracy under harsh operating conditions, and emergency response procedures for unmanned operations. These challenges require continued development before full autonomous operation becomes practical for semi-mobile crushing applications.

Scalability and Capacity Enhancement Trends

Future capacity enhancement focuses on modular expansion capabilities enabling operators to adjust crushing capacity based on production requirements and ore body characteristics. Innovation expo insights suggest that hybrid mobility solutions combining stationary foundations with relocatable components provide optimised balance between capacity and flexibility.

Development Trends:

• Capacity scaling: Modular designs enabling capacity adjustment without complete equipment replacement
• Hybrid systems: Combining stationary and mobile benefits for optimal operational flexibility
• Integration enhancement: Improved compatibility with existing mining equipment and infrastructure
• Environmental optimisation: Enhanced dust suppression, noise reduction, and energy efficiency systems

Market demand for larger capacity units continues growing as mining operations scale increases and ore grades decline. The sustainability transformation initiative provides valuable operational data supporting future technology development and capacity optimisation initiatives.

Strategic Implementation Considerations for Semi-Mobile Crushing

Decision Framework for Technology Adoption

Technology adoption decisions require comprehensive evaluation of mine-specific factors including reserve characteristics, operational scale, infrastructure requirements, and economic conditions. Mine life duration significantly influences capital investment justification, with longer operational periods supporting higher initial investment in advanced technology systems.

Evaluation Criteria:

• Reserve assessment: Ore body size, grade distribution, and mining sequence requirements
• Operational scale: Production volume requirements and capacity utilisation expectations
• Infrastructure compatibility: Integration requirements with existing equipment and facilities
• Economic analysis: Capital investment requirements, operational cost savings, and payback calculations

Geological characteristics assessment encompasses ore hardness, abrasiveness, moisture content, and size distribution factors affecting equipment selection and operational procedures. These factors directly influence crushing efficiency, maintenance requirements, and equipment longevity considerations.

Industry Best Practices and Lessons Learned

Successful implementation requires comprehensive planning encompassing technical, operational, and organisational factors. Early engagement with equipment suppliers, detailed site preparation, and phased commissioning procedures minimise deployment risks while optimising performance outcomes.

Implementation Success Factors:

• Comprehensive planning: Detailed evaluation of technical, operational, and economic factors
• Supplier collaboration: Early engagement ensuring equipment optimisation for site-specific requirements
• Phased deployment: Sequential implementation reducing operational disruption and technical risks
• Performance monitoring: Continuous evaluation enabling optimisation and improvement opportunities

Risk mitigation approaches include redundancy planning, maintenance protocol development, and operator training programmes ensuring operational continuity during equipment deployment and subsequent operation. These strategies minimise potential disruptions while maximising technology adoption benefits.

Conclusion

The evolution of semi-mobile crushing technology represents a fundamental advancement in mining operational efficiency, environmental performance, and economic optimisation. As demonstrated by successful implementations including the semimobile crushing station Vale S11D, this technology provides strategic advantages for large-scale mining operations seeking operational flexibility without compromising throughput capacity or environmental responsibility.

Furthermore, the integration of these systems with comprehensive IPCC frameworks demonstrates significant potential for transforming traditional mining operations through reduced fuel consumption, improved environmental performance, and enhanced operational efficiency. As mining operations continue to face increasing pressure to optimise costs while meeting sustainability objectives, semi-mobile crushing technology offers a proven pathway toward achieving these seemingly competing objectives.

Disclaimer: This analysis is based on publicly available information and industry observations. Specific performance data, economic calculations, and technical specifications may vary based on site-specific conditions and operational parameters. Investment decisions should consider comprehensive technical and economic evaluation appropriate for specific operational requirements.
